You’ve seen it before.
The BIM model looks flawless in coordination meetings—no visible clashes, clean documentation, and confident approvals. But once construction begins, reality tells a different story:
- Services don’t align
- Structural openings are misplaced
- MEP systems clash on-site
- Teams start improvising
And suddenly, your “coordinated” model becomes a source of rework, delays, and cost overruns.
This isn’t a rare issue—it’s a recurring industry problem.
In this article, we’ll break down why BIM models fail during construction, what teams often overlook, and how to implement a practical validation framework that bridges the gap between digital models and site reality.
Where the Problem Starts: The Hidden Gaps in BIM Models
The issue isn’t BIM itself—it’s how BIM models are created, coordinated, and validated.
Most failures originate in the pre-construction phase, where:
- Coordination is treated as a checklist activity
- Clash detection BIM is mistaken for full validation
- Design intent is not aligned with construction feasibility
The Real Impact on Projects
When BIM model accuracy doesn’t reflect site conditions, the consequences are immediate:
- Construction rework increases by 20–40%
- Delays due to redesign and approvals
- Loss of trust between teams
- Budget overruns and contractual disputes
These are not software problems—they are process and decision-making failures.
Why Current BIM Approaches Fail
What Teams Think vs What Actually Happens
What Teams Think | What Actually Happens |
“Clash detection is complete, so we’re good” | Only geometric clashes are resolved—not constructability |
“The model is approved, so it’s accurate” | Approval ≠ validation against site conditions |
“All disciplines are coordinated” | Coordination lacks depth (especially MEP BIM coordination) |
“We can fix issues during construction” | Fixing on-site = expensive rework |
The Core Problem
Most teams focus on model completeness, not model reliability.
That’s why BIM models don’t match site conditions—even when they appear technically correct.
7 Reasons BIM Models Fail During Construction
- Lack of Pre-Construction BIM Validation
Models are often pushed forward without a structured validation checklist.
Result: Errors are discovered only during execution.
- Over-Reliance on Clash Detection
Clash detection BIM identifies conflicts—but doesn’t answer:
- Can this be installed?
- Is there enough clearance?
- Is sequencing feasible?
Clash-free doesn’t mean construction-ready.
- Poor MEP BIM Coordination
MEP systems are the most complex—and most prone to errors.
Common issues:
- Incorrect routing assumptions
- Missing tolerances
- Ignoring site constraints
Result: Major site-level conflicts.
- Incomplete Federated BIM Models
Disciplines are combined—but not fully integrated.
- Structural, architectural, and MEP models lack alignment
- Dependencies are not validated
This creates hidden coordination gaps.

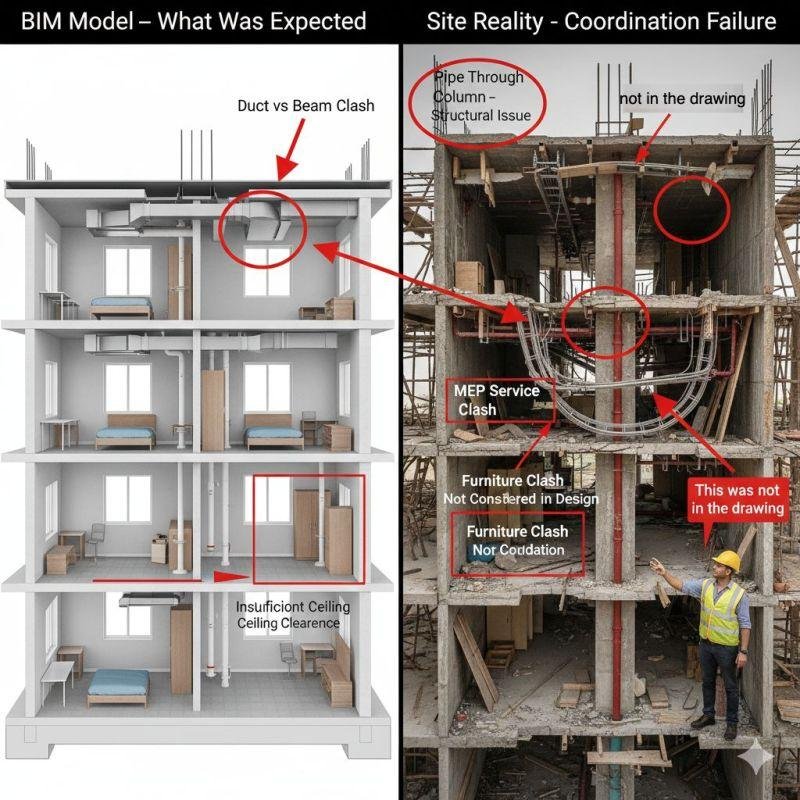

- Ignoring Site Reality
Design teams often work with ideal conditions, while sites operate under constraints:
- Space limitations
- Installation sequence
- Material availability
This creates a digital vs physical mismatch.
- Lack of Ownership (No Clear BIM Manager Role)
Without a defined BIM manager or VDC leader:
- Coordination becomes fragmented
- Decisions lack accountability
Result: Errors slip through unnoticed.
- No BIM Model Quality Check Before Construction
Teams skip final model audits before execution.
Missing checks include:
- Tolerance validation
- Installation feasibility
- Access and maintenance clearance
This is where most construction rework originates.
BIM Validation Framework for Construction Readiness
To prevent these failures, you need more than coordination—you need a structured validation workflow.

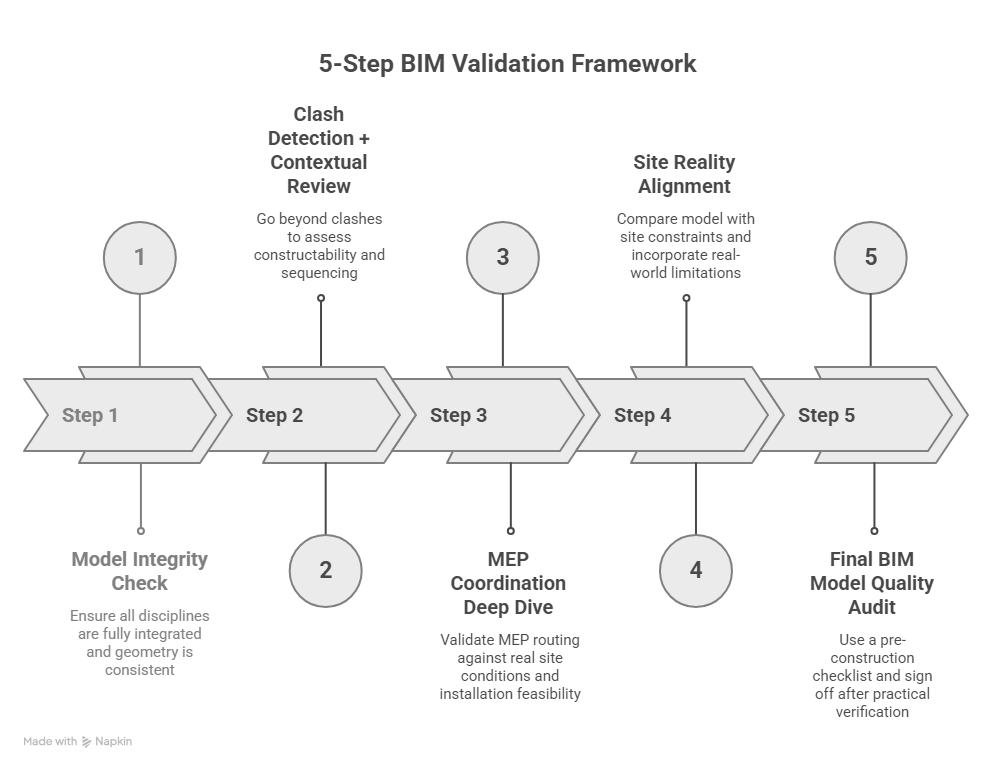

The 5-Step BIM Validation Framework
Step 1: Model Integrity Check
- Ensure all disciplines are fully integrated
- Validate geometry consistency
Step 2: Clash Detection + Contextual Review
- Go beyond clashes
- Assess constructability and sequencing
Step 3: MEP Coordination Deep Dive
- Validate routing against real site conditions
- Check installation feasibility
Step 4: Site Reality Alignment
- Compare model with site constraints
- Incorporate real-world limitations
Step 5: Final BIM Model Quality Audit
- Use a pre-construction BIM validation checklist
- Sign off only after practical verification
This approach shifts BIM from design validation to construction readiness.
Reducing Construction Rework with BIM Validation
Project Scenario
A mid-sized commercial project faced repeated MEP clashes during construction, despite prior BIM coordination.
Problem
- Clash detection was completed
- No constructability validation
- No final BIM model quality check
Approach
- Implemented a structured BIM validation workflow
- Conducted detailed MEP coordination review
- Introduced site-based validation checks
Outcome
- Reduced construction rework by 30%
- Improved coordination between teams
- Faster execution with fewer disruptions
The difference wasn’t tools—it was process clarity.
Comparison: Traditional vs BIM-Driven Construction Workflow
Traditional Approach | BIM Validation Approach |
Reactive issue resolution | Proactive error prevention |
Site-driven corrections | Pre-construction validation |
High rework costs | Reduced rework (up to 30%) |
Fragmented coordination | Integrated decision-making |
Before vs After BIM Implementation
Before BIM Validation | After BIM Validation |
Frequent site conflicts | Minimal on-site clashes |
Delays and rework | Smooth execution |
Misaligned models | Site-aligned BIM models |
High uncertainty | Predictable outcomes |
Key Takeaways
- Clash detection alone is not enough—you need full BIM validation
- Most BIM failures originate before construction begins
- MEP coordination is the biggest risk area
- A structured BIM validation workflow can reduce rework by up to 30%
- BIM success depends on process, not just technology
BIM Doesn’t Fail—Processes Do
BIM models don’t fail because of technology—they fail because of gaps in validation, coordination, and decision-making.
If your projects are facing:
- Frequent rework
- Model-to-site discrepancies
- Coordination breakdowns
…it may be time to rethink your current BIM approach.
A validated BIM model isn’t just a design asset—it’s a construction enabler.
If you’re exploring how to improve BIM model accuracy, reduce construction rework, or implement a validation-driven workflow, this is exactly where strategic consulting makes the difference.
